#include <EigenVector.h>

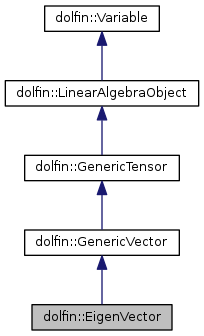

Inheritance diagram for dolfin::EigenVector:

[legend]

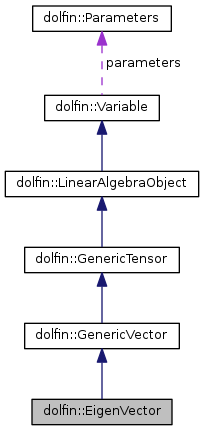

Collaboration diagram for dolfin::EigenVector:

[legend]

Public Member Functions
	EigenVector ()
	Create empty vector (on MPI_COMM_SELF)

	EigenVector (MPI_Comm comm)
	Create empty vector.

	EigenVector (MPI_Comm comm, std::size_t N)
	Create vector of size N.

	EigenVector (const EigenVector &x)
	Copy constructor.

	EigenVector (std::shared_ptr< Eigen::VectorXd > x)
	Construct vector from an Eigen shared_ptr.

virtual	~EigenVector ()
	Destructor.

virtual void	zero ()
	Set all entries to zero and keep any sparse structure.

virtual void	apply (std::string mode)
	Finalize assembly of tensor.

virtual MPI_Comm	mpi_comm () const
	Return MPI communicator.

virtual std::string	str (bool verbose) const
	Return informal string representation (pretty-print)

virtual std::shared_ptr< GenericVector >	copy () const
	Create copy of tensor.

virtual void	init (std::size_t N)
	Initialize vector to size N.

virtual void	init (std::pair< std::size_t, std::size_t > range)
	Resize vector with given ownership range.

virtual void	init (std::pair< std::size_t, std::size_t > range, const std::vector< std::size_t > &local_to_global_map, const std::vector< la_index > &ghost_indices)
	Resize vector with given ownership range and with ghost values.

virtual bool	empty () const
	Return true if vector is empty.

virtual std::size_t	size () const
	Return true if vector is empty.

virtual std::size_t	local_size () const
	Return local size of vector.

virtual std::pair< std::int64_t, std::int64_t >	local_range () const
	Return local ownership range of a vector.

virtual bool	owns_index (std::size_t i) const
	Determine whether global vector index is owned by this process.

virtual void	get (double block, std::size_t m, const dolfin::la_index rows) const
	Get block of values using global indices.

virtual void	get_local (double block, std::size_t m, const dolfin::la_index rows) const
	Get block of values using local indices.

virtual void	set (const double block, std::size_t m, const dolfin::la_index rows)
	Set block of values using global indices.

virtual void	set_local (const double block, std::size_t m, const dolfin::la_index rows)
	Set block of values using local indices.

virtual void	add (const double block, std::size_t m, const dolfin::la_index rows)
	Add block of values using global indices.

virtual void	add_local (const double block, std::size_t m, const dolfin::la_index rows)
	Add block of values using local indices.

virtual void	get_local (std::vector< double > &values) const
	Get all values on local process.

virtual void	set_local (const std::vector< double > &values)
	Set all values on local process.

virtual void	add_local (const Array< double > &values)
	Add values to each entry on local process.

virtual void	gather (GenericVector &x, const std::vector< dolfin::la_index > &indices) const
	Gather entries into local vector x.

virtual void	gather (std::vector< double > &x, const std::vector< dolfin::la_index > &indices) const
	Gather entries into x.

virtual void	gather_on_zero (std::vector< double > &x) const
	Gather all entries into x on process 0.

virtual void	axpy (double a, const GenericVector &x)
	Add multiple of given vector (AXPY operation)

virtual void	abs ()
	Replace all entries in the vector by their absolute values.

virtual double	inner (const GenericVector &x) const
	Return inner product with given vector.

virtual double	norm (std::string norm_type) const
	Compute norm of vector.

virtual double	min () const
	Return minimum value of vector.

virtual double	max () const
	Return maximum value of vector.

virtual double	sum () const
	Return sum of values of vector.

virtual double	sum (const Array< std::size_t > &rows) const

virtual const EigenVector &	operator*= (double a)
	Multiply vector by given number.

virtual const EigenVector &	operator*= (const GenericVector &x)
	Multiply vector by another vector pointwise.

virtual const EigenVector &	operator/= (double a)
	Divide vector by given number.

virtual const EigenVector &	operator+= (const GenericVector &x)
	Add given vector.

virtual const EigenVector &	operator+= (double a)
	Add number to all components of a vector.

virtual const EigenVector &	operator-= (const GenericVector &x)
	Subtract given vector.

virtual const EigenVector &	operator-= (double a)
	Subtract number from all components of a vector.

virtual const GenericVector &	operator= (const GenericVector &x)
	Assignment operator.

virtual const EigenVector &	operator= (double a)
	Assignment operator.

virtual GenericLinearAlgebraFactory &	factory () const
	Return linear algebra backend factory.

virtual void	resize (std::size_t N)
	Resize vector to size N.

std::shared_ptr< const Eigen::VectorXd >	vec () const
	Return reference to Eigen vector (const version)

std::shared_ptr< Eigen::VectorXd >	vec ()
	Return reference to Eigen vector (non-const version)

virtual double	operator[] (dolfin::la_index i) const
	Access value of given entry (const version)

double &	operator[] (dolfin::la_index i)
	Access value of given entry (non-const version)

const EigenVector &	operator= (const EigenVector &x)
	Assignment operator.

double *	data ()
	Return pointer to underlying data.

const double *	data () const
	Return pointer to underlying data (const version)

Public Member Functions inherited from dolfin::GenericVector
virtual	~GenericVector ()
	Destructor.

virtual void	init (const TensorLayout &tensor_layout)

virtual std::size_t	rank () const
	Return tensor rank (number of dimensions)

virtual std::size_t	size (std::size_t dim) const
	Return size of given dimension.

virtual std::pair< std::int64_t, std::int64_t >	local_range (std::size_t dim) const
	Return local ownership range.

virtual void	get (double block, const dolfin::la_index num_rows, const dolfin::la_index const rows) const
	Get block of values using global indices.

virtual void	get_local (double block, const dolfin::la_index num_rows, const dolfin::la_index const rows) const
	Get block of values using local indices.

virtual void	set (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Set block of values using global indices.

virtual void	set_local (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Set block of values using local indices.

virtual void	add (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Add block of values using global indices.

virtual void	add_local (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Add block of values using local indices.

virtual void	add (const double *block, const std::vector< ArrayView< const dolfin::la_index >> &rows)
	Add block of values using global indices.

virtual void	add_local (const double *block, const std::vector< ArrayView< const dolfin::la_index >> &rows)
	Add block of values using local indices.

std::shared_ptr< GenericVector >	operator+ (const GenericVector &x)
	Sum two vectors (returns a new vector)

std::shared_ptr< GenericVector >	operator+ (double a)
	Add scalar to a vector (returns a new vector)

std::shared_ptr< GenericVector >	operator* (double a)
	Multiply vector by a scalar (returns a new vector)

virtual double	getitem (dolfin::la_index i) const
	Get value of given entry.

virtual void	setitem (dolfin::la_index i, double value)

Public Member Functions inherited from dolfin::GenericTensor
virtual	~GenericTensor ()
	Destructor.

Public Member Functions inherited from dolfin::LinearAlgebraObject
virtual const LinearAlgebraObject *	instance () const
	Return concrete instance / unwrap (const version)

virtual LinearAlgebraObject *	instance ()
	Return concrete instance / unwrap (non-const version)

virtual std::shared_ptr< const LinearAlgebraObject >	shared_instance () const
	Return concrete shared ptr instance / unwrap (const version)

virtual std::shared_ptr< LinearAlgebraObject >	shared_instance ()
	Return concrete shared ptr instance / unwrap (non-const version)

Public Member Functions inherited from dolfin::Variable
	Variable ()
	Create unnamed variable.

	Variable (const std::string name, const std::string label)
	Create variable with given name and label.

	Variable (const Variable &variable)
	Copy constructor.

virtual	~Variable ()
	Destructor.

const Variable &	operator= (const Variable &variable)
	Assignment operator.

void	rename (const std::string name, const std::string label)
	Rename variable.

std::string	name () const
	Return name.

std::string	label () const
	Return label (description)

std::size_t	id () const

Additional Inherited Members
Public Attributes inherited from dolfin::Variable
Parameters	parameters
	Parameters.

Detailed Description

This class provides a simple vector class based on Eigen. It is a simple wrapper for a Eigen vector implementing the GenericVector interface.

The interface is intentionally simple. For advanced usage, access the underlying Eigen vector and use the standard Eigen interface which is documented at http://eigen.tuxfamily.org

Member Function Documentation

double EigenVector::sum ( const Array< std::size_t > & rows ) const

virtual

Return sum of selected rows in vector. Repeated entries are only summed once.

Implements dolfin::GenericVector.

The documentation for this class was generated from the following files:

/home/fenics/shared/dolfin/la/EigenVector.h
/home/fenics/shared/dolfin/la/EigenVector.cpp
