This class defines a common interface for vectors. More...

#include <GenericVector.h>

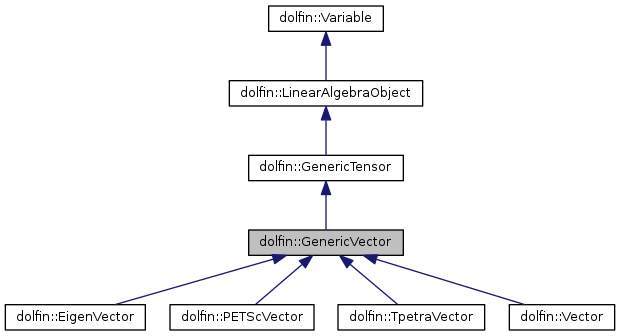

Inheritance diagram for dolfin::GenericVector:

[legend]

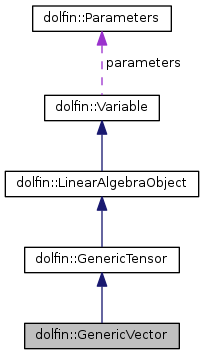

Collaboration diagram for dolfin::GenericVector:

[legend]

Public Member Functions
virtual	~GenericVector ()
	Destructor.

virtual void	init (const TensorLayout &tensor_layout)

virtual std::size_t	rank () const
	Return tensor rank (number of dimensions)

virtual std::size_t	size (std::size_t dim) const
	Return size of given dimension.

virtual std::pair< std::int64_t, std::int64_t >	local_range (std::size_t dim) const
	Return local ownership range.

virtual void	get (double block, const dolfin::la_index num_rows, const dolfin::la_index const rows) const
	Get block of values using global indices.

virtual void	get_local (double block, const dolfin::la_index num_rows, const dolfin::la_index const rows) const
	Get block of values using local indices.

virtual void	set (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Set block of values using global indices.

virtual void	set_local (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Set block of values using local indices.

virtual void	add (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Add block of values using global indices.

virtual void	add_local (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Add block of values using local indices.

virtual void	add (const double *block, const std::vector< ArrayView< const dolfin::la_index >> &rows)
	Add block of values using global indices.

virtual void	add_local (const double *block, const std::vector< ArrayView< const dolfin::la_index >> &rows)
	Add block of values using local indices.

virtual void	zero ()=0
	Set all entries to zero and keep any sparse structure.

virtual void	apply (std::string mode)=0
	Finalize assembly of tensor.

virtual std::string	str (bool verbose) const =0
	Return informal string representation (pretty-print)

virtual std::shared_ptr< GenericVector >	copy () const =0
	Return copy of vector.

virtual void	init (std::size_t N)=0
	Initialize vector to global size N.

virtual void	init (std::pair< std::size_t, std::size_t > range)=0
	Initialize vector with given local ownership range.

virtual void	init (std::pair< std::size_t, std::size_t > range, const std::vector< std::size_t > &local_to_global_map, const std::vector< la_index > &ghost_indices)=0

virtual std::size_t	size () const =0
	Return global size of vector.

virtual std::size_t	local_size () const =0
	Return local size of vector.

virtual std::pair< std::int64_t, std::int64_t >	local_range () const =0
	Return local ownership range of a vector.

virtual bool	owns_index (std::size_t i) const =0
	Determine whether global vector index is owned by this process.

virtual void	get (double block, std::size_t m, const dolfin::la_index rows) const =0

virtual void	get_local (double block, std::size_t m, const dolfin::la_index rows) const =0

virtual void	set (const double block, std::size_t m, const dolfin::la_index rows)=0
	Set block of values using global indices.

virtual void	set_local (const double block, std::size_t m, const dolfin::la_index rows)=0
	Set block of values using local indices.

virtual void	add (const double block, std::size_t m, const dolfin::la_index rows)=0
	Add block of values using global indices.

virtual void	add_local (const double block, std::size_t m, const dolfin::la_index rows)=0
	Add block of values using local indices.

virtual void	get_local (std::vector< double > &values) const =0
	Get all values on local process.

virtual void	set_local (const std::vector< double > &values)=0
	Set all values on local process.

virtual void	add_local (const Array< double > &values)=0
	Add values to each entry on local process.

virtual void	gather (GenericVector &x, const std::vector< dolfin::la_index > &indices) const =0

virtual void	gather (std::vector< double > &x, const std::vector< dolfin::la_index > &indices) const =0
	Gather entries (given by global indices) into x.

virtual void	gather_on_zero (std::vector< double > &x) const =0
	Gather all entries into x on process 0.

virtual void	axpy (double a, const GenericVector &x)=0
	Add multiple of given vector (AXPY operation)

virtual void	abs ()=0
	Replace all entries in the vector by their absolute values.

virtual double	inner (const GenericVector &x) const =0
	Return inner product with given vector.

virtual double	norm (std::string norm_type) const =0
	Return norm of vector.

virtual double	min () const =0
	Return minimum value of vector.

virtual double	max () const =0
	Return maximum value of vector.

virtual double	sum () const =0
	Return sum of vector.

virtual double	sum (const Array< std::size_t > &rows) const =0

std::shared_ptr< GenericVector >	operator+ (const GenericVector &x)
	Sum two vectors (returns a new vector)

std::shared_ptr< GenericVector >	operator+ (double a)
	Add scalar to a vector (returns a new vector)

std::shared_ptr< GenericVector >	operator* (double a)
	Multiply vector by a scalar (returns a new vector)

virtual const GenericVector &	operator*= (double a)=0
	Multiply vector by given number.

virtual const GenericVector &	operator*= (const GenericVector &x)=0
	Multiply vector by another vector pointwise.

virtual const GenericVector &	operator/= (double a)=0
	Divide vector by given number.

virtual const GenericVector &	operator+= (const GenericVector &x)=0
	Add given vector.

virtual const GenericVector &	operator+= (double a)=0
	Add number to all components of a vector.

virtual const GenericVector &	operator-= (const GenericVector &x)=0
	Subtract given vector.

virtual const GenericVector &	operator-= (double a)=0
	Subtract number from all components of a vector.

virtual const GenericVector &	operator= (const GenericVector &x)=0
	Assignment operator.

virtual const GenericVector &	operator= (double a)=0
	Assignment operator.

virtual double	operator[] (dolfin::la_index i) const
	Get value of given entry.

virtual double	getitem (dolfin::la_index i) const
	Get value of given entry.

virtual void	setitem (dolfin::la_index i, double value)

Public Member Functions inherited from dolfin::GenericTensor
virtual	~GenericTensor ()
	Destructor.

virtual bool	empty () const =0
	Return true if empty.

virtual GenericLinearAlgebraFactory &	factory () const =0
	Return linear algebra backend factory.

Public Member Functions inherited from dolfin::LinearAlgebraObject
virtual const LinearAlgebraObject *	instance () const
	Return concrete instance / unwrap (const version)

virtual LinearAlgebraObject *	instance ()
	Return concrete instance / unwrap (non-const version)

virtual std::shared_ptr< const LinearAlgebraObject >	shared_instance () const
	Return concrete shared ptr instance / unwrap (const version)

virtual std::shared_ptr< LinearAlgebraObject >	shared_instance ()
	Return concrete shared ptr instance / unwrap (non-const version)

virtual MPI_Comm	mpi_comm () const =0
	Return MPI communicator.

Public Member Functions inherited from dolfin::Variable
	Variable ()
	Create unnamed variable.

	Variable (const std::string name, const std::string label)
	Create variable with given name and label.

	Variable (const Variable &variable)
	Copy constructor.

virtual	~Variable ()
	Destructor.

const Variable &	operator= (const Variable &variable)
	Assignment operator.

void	rename (const std::string name, const std::string label)
	Rename variable.

std::string	name () const
	Return name.

std::string	label () const
	Return label (description)

std::size_t	id () const

Additional Inherited Members
Public Attributes inherited from dolfin::Variable
Parameters	parameters
	Parameters.

Detailed Description

This class defines a common interface for vectors.

Member Function Documentation

virtual void dolfin::GenericVector::gather	(	GenericVector &	x,
		const std::vector< dolfin::la_index > &	indices
	)		const

pure virtual

Gather entries (given by global indices) into local vector x

Implemented in dolfin::EigenVector, dolfin::Vector, dolfin::PETScVector, and dolfin::TpetraVector.

virtual void dolfin::GenericVector::get	(	double *	block,
		std::size_t	m,
		const dolfin::la_index *	rows
	)		const

pure virtual

Get block of values using global indices (values must all live on the local process, ghosts cannot be accessed)

Implemented in dolfin::EigenVector, dolfin::PETScVector, dolfin::TpetraVector, and dolfin::Vector.

virtual void dolfin::GenericVector::get_local	(	double *	block,
		std::size_t	m,
		const dolfin::la_index *	rows
	)		const

pure virtual

Get block of values using local indices (values must all live on the local process, ghost are accessible)

Implemented in dolfin::EigenVector, dolfin::PETScVector, dolfin::Vector, and dolfin::TpetraVector.

virtual void dolfin::GenericVector::init ( const TensorLayout & tensor_layout )

inlinevirtual

Initialize zero tensor using sparsity pattern FIXME: This needs to be implemented on backend side! Remove it!

Implements dolfin::GenericTensor.

virtual void dolfin::GenericVector::init	(	std::pair< std::size_t, std::size_t >	range,
		const std::vector< std::size_t > &	local_to_global_map,
		const std::vector< la_index > &	ghost_indices
	)

pure virtual

Initialise vector with given ownership range and with ghost values FIXME: Reimplement using init(const TensorLayout&) and deprecate

Implemented in dolfin::EigenVector, dolfin::PETScVector, dolfin::TpetraVector, and dolfin::Vector.

virtual void dolfin::GenericVector::setitem	(	dolfin::la_index	i,
		double	value
	)

inlinevirtual

Set given entry to value. apply("insert") should be called before using using the object.

virtual double dolfin::GenericVector::sum ( const Array< std::size_t > & rows ) const

pure virtual

Return sum of selected rows in vector. Repeated entries are only summed once.

Implemented in dolfin::EigenVector, dolfin::Vector, dolfin::PETScVector, and dolfin::TpetraVector.

The documentation for this class was generated from the following file:

/home/fenics/shared/dolfin/la/GenericVector.h
