dolfin::PETScSNESSolver Class Reference

#include <PETScSNESSolver.h>

Inheritance diagram for dolfin::PETScSNESSolver:

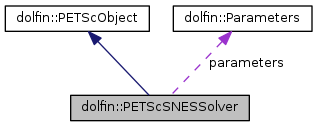

Collaboration diagram for dolfin::PETScSNESSolver:

Public Member Functions
	PETScSNESSolver (MPI_Comm comm, std::string nls_type="default")
	Create SNES solver.
	PETScSNESSolver (std::string nls_type="default")
	Create SNES solver on MPI_COMM_WORLD.
virtual	~PETScSNESSolver ()
	Destructor.
std::pair< std::size_t, bool >	solve (NonlinearProblem &nonlinear_problem, GenericVector &x, const GenericVector &lb, const GenericVector &ub)
std::pair< std::size_t, bool >	solve (NonlinearProblem &nonlinear_function, GenericVector &x)
void	init (NonlinearProblem &nonlinear_problem, GenericVector &x)
void	set_from_options () const
	Set options from the PETSc options database.
void	set_options_prefix (std::string options_prefix)
std::string	get_options_prefix () const
MPI_Comm	mpi_comm () const
	Return the MPI communicator.
SNES	snes () const
	Return PETSc SNES pointer.
Public Member Functions inherited from dolfin::PETScObject
	PETScObject ()
	Constructor. Ensures that PETSc has been initialised.
virtual	~PETScObject ()
	Destructor.

Static Public Member Functions
static std::vector< std::pair< std::string, std::string > >	methods ()
	Return a list of available solver methods.
static Parameters	default_parameters ()
	Default parameter values.
Static Public Member Functions inherited from dolfin::PETScObject
static void	petsc_error (int error_code, std::string filename, std::string petsc_function)
	Print error message for PETSc calls that return an error.

Public Attributes
Parameters	parameters
	Parameters.

Detailed Description

This class implements methods for solving nonlinear systems via PETSc's SNES interface. It includes line search and trust region techniques for globalising the convergence of the nonlinear iteration.

Member Function Documentation

std::string PETScSNESSolver::get_options_prefix

(

)

const

Returns the prefix used by PETSc when searching the PETSc options database

void PETScSNESSolver::init	(	NonlinearProblem &	nonlinear_problem,
		GenericVector &	x
	)

Set up the SNES object, but don't do anything yet, in case the user wants to access the SNES object directly

void PETScSNESSolver::set_options_prefix

(

std::string

options_prefix

)

Sets the prefix used by PETSc when searching the PETSc options database

std::pair< std::size_t, bool > PETScSNESSolver::solve	(	NonlinearProblem &	nonlinear_problem,
		GenericVector &	x,
		const GenericVector &	lb,
		const GenericVector &	ub
	)

Solve a nonlinear variational inequality with bound constraints

Arguments nonlinear_function (NonlinearProblem) The nonlinear problem. x (GenericVector) The vector. lb (GenericVector) The lower bound. ub (GenericVector) The upper bound.

Returns std::pair<std::size_t, bool> Pair of number of Newton iterations, and whether iteration converged)

std::pair< std::size_t, bool > PETScSNESSolver::solve	(	NonlinearProblem &	nonlinear_function,
		GenericVector &	x
	)

Solve abstract nonlinear problem :math:F(x) = 0 for given :math:F and Jacobian :math:\dfrac{\partial F}{\partial x}.

Arguments nonlinear_function (NonlinearProblem) The nonlinear problem. x (GenericVector) The vector.

Returns std::pair<std::size_t, bool> Pair of number of Newton iterations, and whether iteration converged)

---

The documentation for this class was generated from the following files:

• /home/fenics/shared/dolfin/nls/PETScSNESSolver.h
• /home/fenics/shared/dolfin/nls/PETScSNESSolver.cpp
