dolfin::TAOLinearBoundSolver Class Reference

#include <TAOLinearBoundSolver.h>

Inheritance diagram for dolfin::TAOLinearBoundSolver:

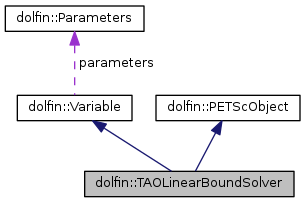

Collaboration diagram for dolfin::TAOLinearBoundSolver:

Public Member Functions
	TAOLinearBoundSolver (MPI_Comm comm)
	Create TAO bound constrained solver.
	TAOLinearBoundSolver (const std::string method="default", const std::string ksp_type="default", const std::string pc_type="default")
	Create TAO bound constrained solver.
	~TAOLinearBoundSolver ()
	Destructor.
std::size_t	solve (const GenericMatrix &A, GenericVector &x, const GenericVector &b, const GenericVector &xl, const GenericVector &xu)
std::size_t	solve (const PETScMatrix &A, PETScVector &x, const PETScVector &b, const PETScVector &xl, const PETScVector &xu)
void	set_solver (const std::string &)
	Set the TAO solver type.
void	set_ksp (const std::string ksp_type="default")
	Set PETSC Krylov Solver (ksp) used by TAO.
Tao	tao () const
	Return TAO solver pointer.
std::shared_ptr< const PETScMatrix >	get_matrix () const
	Return Matrix shared pointer.
std::shared_ptr< const PETScVector >	get_vector () const
	Return load vector shared pointer.
Public Member Functions inherited from dolfin::Variable
	Variable ()
	Create unnamed variable.
	Variable (const std::string name, const std::string label)
	Create variable with given name and label.
	Variable (const Variable &variable)
	Copy constructor.
virtual	~Variable ()
	Destructor.
const Variable &	operator= (const Variable &variable)
	Assignment operator.
void	rename (const std::string name, const std::string label)
	Rename variable.
std::string	name () const
	Return name.
std::string	label () const
	Return label (description)
std::size_t	id () const
virtual std::string	str (bool verbose) const
	Return informal string representation (pretty-print)
Public Member Functions inherited from dolfin::PETScObject
	PETScObject ()
	Constructor. Ensures that PETSc has been initialised.
virtual	~PETScObject ()
	Destructor.

Static Public Member Functions
static std::map< std::string, std::string >	methods ()
	Return a list of available Tao solver methods.
static std::map< std::string, std::string >	krylov_solvers ()
	Return a list of available krylov solvers.
static std::map< std::string, std::string >	preconditioners ()
	Return a list of available preconditioners.
static Parameters	default_parameters ()
	Default parameter values.
Static Public Member Functions inherited from dolfin::PETScObject
static void	petsc_error (int error_code, std::string filename, std::string petsc_function)
	Print error message for PETSc calls that return an error.

Additional Inherited Members
Public Attributes inherited from dolfin::Variable
Parameters	parameters
	Parameters.

Detailed Description

This class provides a bound constrained solver for a linear variational inequality defined by a matrix A and a vector b. It solves the problem:

Find :math:x_l\leq x\leq x_u such that :math:(Ax-b)\cdot (y-x)\geq 0,\; \forall x_l\leq y\leq x_u

It is a wrapper for the TAO bound constrained solver.

# Assemble the linear system
A, b = assemble_system(a, L, bc)
# Define the constraints
constraint_u = Constant(1.)
constraint_l = Constant(0.)
u_min = interpolate(constraint_l, V)
u_max = interpolate(constraint_u, V)
# Define the function to store the solution
usol=Function(V)
# Create the TAOLinearBoundSolver
solver=TAOLinearBoundSolver("tao_gpcg","gmres")
# Set some parameters
solver.parameters["monitor_convergence"]=True
solver.parameters["report"]=True
# Solve the problem
solver.solve(A, usol.vector(), b , u_min.vector(), u_max.vector())
info(solver.parameters,True)

Member Function Documentation

std::size_t TAOLinearBoundSolver::solve	(	const GenericMatrix &	A,
		GenericVector &	x,
		const GenericVector &	b,
		const GenericVector &	xl,
		const GenericVector &	xu
	)

Solve the linear variational inequality defined by A and b with xl =< x <= xu

std::size_t TAOLinearBoundSolver::solve	(	const PETScMatrix &	A,
		PETScVector &	x,
		const PETScVector &	b,
		const PETScVector &	xl,
		const PETScVector &	xu
	)

Solve the linear variational inequality defined by A and b with xl =< x <= xu

---

The documentation for this class was generated from the following files:

• /home/fenics/shared/dolfin/nls/TAOLinearBoundSolver.h
• /home/fenics/shared/dolfin/nls/TAOLinearBoundSolver.cpp
