#include <TpetraVector.h>

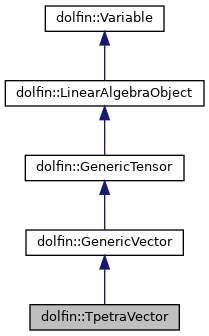

Inheritance diagram for dolfin::TpetraVector:

[legend]

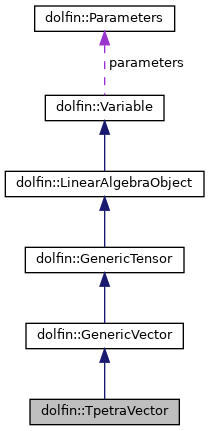

Collaboration diagram for dolfin::TpetraVector:

[legend]

Public Types
typedef Tpetra::MultiVector ::node_type	node_type
	Node type.

typedef Tpetra::Map< int, dolfin::la_index, node_type >	map_type
	TpetraVector map type (local index, global index)

typedef Tpetra::MultiVector< double, int, dolfin::la_index, node_type >	vector_type
	TpetraVector vector type (scalar, local index, global index, node)

Public Member Functions
	TpetraVector (MPI_Comm comm=MPI_COMM_WORLD)
	Create empty vector.

	TpetraVector (MPI_Comm comm, std::size_t N)
	Create vector of size N.

	TpetraVector (const TpetraVector &x)
	Copy constructor.

virtual	~TpetraVector ()
	Create vector wrapper of Tpetra Vec pointer. More...

virtual void	zero ()
	Set all entries to zero and keep any sparse structure.

virtual void	apply (std::string mode)
	Finalize assembly of tensor.

virtual MPI_Comm	mpi_comm () const
	Return MPI communicator.

virtual std::string	str (bool verbose) const
	Return informal string representation (pretty-print)

virtual std::shared_ptr< GenericVector >	copy () const
	Return copy of vector.

virtual void	init (std::size_t N)
	Initialize vector to global size N.

virtual void	init (std::pair< std::size_t, std::size_t > range)
	Initialize vector with given ownership range.

virtual void	init (std::pair< std::size_t, std::size_t > range, const std::vector< std::size_t > &local_to_global_map, const std::vector< la_index > &ghost_indices)

virtual bool	empty () const
	Return true if vector is empty.

virtual std::size_t	size () const
	Return size of vector.

virtual std::size_t	local_size () const
	Return local size of vector.

virtual std::pair< std::int64_t, std::int64_t >	local_range () const
	Return ownership range of a vector.

virtual bool	owns_index (std::size_t i) const
	Determine whether global vector index is owned by this process.

virtual void	get (double block, std::size_t m, const dolfin::la_index rows) const

virtual void	get_local (double block, std::size_t m, const dolfin::la_index rows) const
	Get block of values using local indices.

virtual void	set (const double block, std::size_t m, const dolfin::la_index rows)
	Set block of values using global indices.

virtual void	set_local (const double block, std::size_t m, const dolfin::la_index rows)
	Set block of values using local indices.

virtual void	add (const double block, std::size_t m, const dolfin::la_index rows)
	Add block of values using global indices.

virtual void	add_local (const double block, std::size_t m, const dolfin::la_index rows)
	Add block of values using local indices.

virtual void	get_local (std::vector< double > &values) const
	Get all values on local process.

virtual void	set_local (const std::vector< double > &values)
	Set all values on local process.

virtual void	add_local (const Array< double > &values)
	Add values to each entry on local process.

virtual void	gather (GenericVector &y, const std::vector< dolfin::la_index > &indices) const

virtual void	gather (std::vector< double > &x, const std::vector< dolfin::la_index > &indices) const

virtual void	gather_on_zero (std::vector< double > &x) const

virtual void	axpy (double a, const GenericVector &x)
	Add multiple of given vector (AXPY operation)

virtual void	abs ()
	Replace all entries in the vector by their absolute values.

virtual double	inner (const GenericVector &v) const
	Return inner product with given vector.

virtual double	norm (std::string norm_type) const
	Return norm of vector.

virtual double	min () const
	Return minimum value of vector.

virtual double	max () const
	Return maximum value of vector.

virtual double	sum () const
	Return sum of values of vector.

virtual double	sum (const Array< std::size_t > &rows) const
	Return sum of selected rows in vector.

virtual const TpetraVector &	operator*= (double a)
	Multiply vector by given number.

virtual const TpetraVector &	operator*= (const GenericVector &x)
	Multiply vector by another vector pointwise.

virtual const TpetraVector &	operator/= (double a)
	Divide vector by given number.

virtual const TpetraVector &	operator+= (const GenericVector &x)
	Add given vector.

virtual const TpetraVector &	operator+= (double a)
	Add number to all components of a vector.

virtual const TpetraVector &	operator-= (const GenericVector &x)
	Subtract given vector.

virtual const TpetraVector &	operator-= (double a)
	Subtract number from all components of a vector.

virtual const GenericVector &	operator= (const GenericVector &x)
	Assignment operator.

virtual const TpetraVector &	operator= (double a)
	Assignment operator.

virtual void	update_ghost_values ()
	Update ghost values in vector.

virtual GenericLinearAlgebraFactory &	factory () const
	Return linear algebra backend factory.

Teuchos::RCP< vector_type >	vec () const
	Return pointer to Tpetra vector object.

const TpetraVector &	operator= (const TpetraVector &x)
	Assignment operator.

void	mapdump (const std::string desc)
	Dump x.map and ghost_map for debugging.

Public Member Functions inherited from dolfin::GenericVector
virtual	~GenericVector ()
	Destructor.

virtual void	init (const TensorLayout &tensor_layout)

virtual std::size_t	rank () const
	Return tensor rank (number of dimensions)

virtual std::size_t	size (std::size_t dim) const
	Return size of given dimension.

virtual std::pair< std::int64_t, std::int64_t >	local_range (std::size_t dim) const
	Return local ownership range.

virtual void	get (double block, const dolfin::la_index num_rows, const dolfin::la_index const rows) const
	Get block of values using global indices.

virtual void	get_local (double block, const dolfin::la_index num_rows, const dolfin::la_index const rows) const
	Get block of values using local indices.

virtual void	set (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Set block of values using global indices.

virtual void	set_local (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Set block of values using local indices.

virtual void	add (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Add block of values using global indices.

virtual void	add_local (const double block, const dolfin::la_index num_rows, const dolfin::la_index const rows)
	Add block of values using local indices.

virtual void	add (const double *block, const std::vector< ArrayView< const dolfin::la_index >> &rows)
	Add block of values using global indices.

virtual void	add_local (const double *block, const std::vector< ArrayView< const dolfin::la_index >> &rows)
	Add block of values using local indices.

std::shared_ptr< GenericVector >	operator+ (const GenericVector &x)
	Sum two vectors (returns a new vector)

std::shared_ptr< GenericVector >	operator+ (double a)
	Add scalar to a vector (returns a new vector)

std::shared_ptr< GenericVector >	operator* (double a)
	Multiply vector by a scalar (returns a new vector)

virtual double	operator[] (dolfin::la_index i) const
	Get value of given entry.

virtual double	getitem (dolfin::la_index i) const
	Get value of given entry.

virtual void	setitem (dolfin::la_index i, double value)

Public Member Functions inherited from dolfin::GenericTensor
virtual	~GenericTensor ()
	Destructor.

Public Member Functions inherited from dolfin::LinearAlgebraObject
virtual const LinearAlgebraObject *	instance () const
	Return concrete instance / unwrap (const version)

virtual LinearAlgebraObject *	instance ()
	Return concrete instance / unwrap (non-const version)

virtual std::shared_ptr< const LinearAlgebraObject >	shared_instance () const
	Return concrete shared ptr instance / unwrap (const version)

virtual std::shared_ptr< LinearAlgebraObject >	shared_instance ()
	Return concrete shared ptr instance / unwrap (non-const version)

Public Member Functions inherited from dolfin::Variable
	Variable ()
	Create unnamed variable.

	Variable (const std::string name, const std::string label)
	Create variable with given name and label.

	Variable (const Variable &variable)
	Copy constructor.

virtual	~Variable ()
	Destructor.

const Variable &	operator= (const Variable &variable)
	Assignment operator.

void	rename (const std::string name, const std::string label)
	Rename variable.

std::string	name () const
	Return name.

std::string	label () const
	Return label (description)

std::size_t	id () const

Static Public Member Functions
static void	mapdump (Teuchos::RCP< const map_type > xmap, const std::string desc)
	output map for debugging

Friends
class	TpetraMatrix

Additional Inherited Members
Public Attributes inherited from dolfin::Variable
Parameters	parameters
	Parameters.

Detailed Description

This class provides a simple vector class based on Tpetra. It is a wrapper for Teuchos::RCP<Tpetra::MultiVector> implementing the GenericVector interface.

The interface is intentionally simple. For advanced usage, access the Teuchos::RCP<Tpetra::MultiVector> using the function vec() and use the standard Tpetra interface.

Constructor & Destructor Documentation

◆ ~TpetraVector()

TpetraVector::~TpetraVector ( )

virtual

Create vector wrapper of Tpetra Vec pointer.

Destructor

Member Function Documentation

◆ gather() [1/2]

void TpetraVector::gather	(	GenericVector &	y,
		const std::vector< dolfin::la_index > &	indices
	)		const

virtual

Gather entries (given by global indices) into local (MPI_COMM_SELF) vector x. Provided x must be empty or of correct dimension (same as provided indices). This operation is collective

Implements dolfin::GenericVector.

◆ gather() [2/2]

void TpetraVector::gather	(	std::vector< double > &	x,
		const std::vector< dolfin::la_index > &	indices
	)		const

virtual

Gather entries (given by global indices) into x. This operation is collective

Implements dolfin::GenericVector.

◆ gather_on_zero()

void TpetraVector::gather_on_zero ( std::vector< double > & x ) const

virtual

Gather all entries into x on process 0. This operation is collective

Implements dolfin::GenericVector.

◆ get()

void TpetraVector::get	(	double *	block,
		std::size_t	m,
		const dolfin::la_index *	rows
	)		const

virtual

Get block of values using global indices (all values must be owned by local process, ghosts cannot be accessed)

Implements dolfin::GenericVector.

◆ init()

void TpetraVector::init	(	std::pair< std::size_t, std::size_t >	range,
		const std::vector< std::size_t > &	local_to_global_map,
		const std::vector< la_index > &	ghost_indices
	)

virtual

Initialize vector with given ownership range and with ghost values

Implements dolfin::GenericVector.

The documentation for this class was generated from the following files:

/home/fenics/shared/dolfin/dolfin/la/TpetraVector.h
/home/fenics/shared/dolfin/dolfin/la/TpetraVector.cpp
